Name: Plastic Industry Rubber Hot Sale Long Service Life Rubber Vulcanizing Press For Mechanical Hardware
Brand: Plastic Industry Rubber Hot Sale Long Service Life Rubber Vulcanizing Press For Mechanical Hardware
SKU: XLB-1200*1200, customized type
Rating: 4.6 (113 reviews)

特徴ギャラリー製品の説明見積依頼

特徴

仕様

Type: Vulcanizer

Condition: New

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot product 2021

Warranty of core components: 2 years

Core Components: PLC, motor, bearing, gear, pump

Warranty: 1 Year

Key Selling Points: long service time

Power (kW): 5.5 kW

Weight (KG): 10000 KG

Applicable Industries: Rubber plastic industry

Showroom Location: Canada, India, America

Machine type: Rubber vulcanizer

Model type: XLB-1200*1200, customized type

Frame or column structure: frame or column

Automatic grade: Full automatic

working layer: 1-6layer

証明: CE ISO

After warranty service: Video technical support, online support, spare parts,

Sealing: Keep no oilkage

Machine color: BLUE/ Green/ as your request

Voltage: Customized

基本情報

証明: CE ISO

Model Number: XLB-1200*1200, customized type

お支払配送条件

Supply Ability: 30 Set/Sets per Month

製品の説明

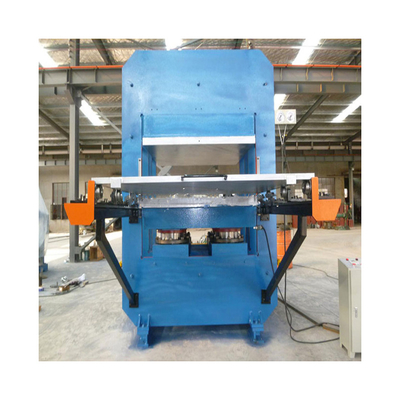

1.Structure This machine is frame structure, including main machine, hydraulic station, electric controlling cabinet. Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opeing device. 2. Operation Being a frame structure and upward pressing type, the hating plate opens by self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heaitng plate close while the hydraulic oil provides the pressure. This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and abrade ability, the cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purprose. By moving the operational handle of the control value to the two different positions, the heating plate can open and close. It uses the electric pipe for heating, thusmakes the workshop clean with easy and reliable operation. 3. Technical parameter Frame type plate vulcanizing press

Type	XLB-DQ(F)1200×1200×2	XLB-DQ(F)1300×1200×1	XLB-Q(F)1200×2500×1	XLB-Q(F)1500×2000×1	XLB-Q(F)2000×3000×1
Total pressure (MN)	3.15	5.60	7.50	10.00	18.00
Plate size(mm)	1200×1200	1300×12000	1200×2500	1500×2000	2000×3000
Daylight(mm)	200	400	400	400	400
Layer	2	1	1	1	1
Piston stroke(mm)	400	400	400	400	400
Plate unit area pressure (kg/ cm2)	22	21.15	25	33.5	30
Main motor power (KW)	5.5	8	9.5	11	26
Overall dimension (L×W×H) (mm)	1685×1320×2450	2000×1860×2500	2560×1700×2780	2810×1550×3325	2900×3200×2860
Weight (kg)	9500	17000	20000	33000	66000

QINGDAO HANGSEN INDUSTRY AND TRADE CO., LTD was established in 1967，have employee more than two hundred, which have two factories. we are manufacturer for package machine and rubber machine, which have more than forty years’ experience. Packaging machinery includes high speed flute laminator, middle speed flute laminator, 5 ply flute laminator, cardboard laminator, flip flop stacker machine as well as other related paper package machines. For rubber machine, we mainly produce rubber kneader series, rubber mixing mill series, rubber extruder and strainer series, rubber powder line, rubber reclaim sheet line, rubber tube line, rubber mat line, tire making line and so on, we can make more than 200 series rubber machines, including environment protect machines, we also can make rubber machine according to customers requirement. Till now, HANGSEN have exported to more than forty counties. including USA, Greece, Spain, Poland, France, Italy, Algeria, Egypt, India, Russia, Argentina, Vietnam, Brazil, Indonesia, Thailand and so on. The company uses exquisite and professional technology to serve all customers and is widely praised and appreciated by customers.
